Características Galeria Descrição de produto Peça umas citações

Características

Especificações

Model Number: A10

Properties: Obstetric Appliances

Product name: Veterinary Ultrasound Scanner

Type: Portable Ultrasound scanner

Usage: Veterinary ultrasound scanner

Material: Full Mettle shell

Certificate: CE/FSC/ISO13485

Applicable object: Pigs, Sheep, Dogs, Cats

Use for: Test Pregnance, numbers of births, Uterine disease

Display: 5.6 Inch LCD HD Display

Feature: Animal Device

Warranty: 1 Year

Informação básica

Certificação: CE/FSC/ISO13485

Model Number: A10

Condições de Pagamento e Envio

Packaging Details: Suit case and master carton

Supply Ability: 50000 Box/Boxes per Month

Descrição de produto

Product Description

Product Name	A10 Full Digital Portable Veterinary Ultrasound Scanner machine
Material	High strength aluminum alloy metal shell
Function	Test Pregnance, numbers of births, Uterine disease
Applicable for	Pigs, Sheep, Dogs, Cats

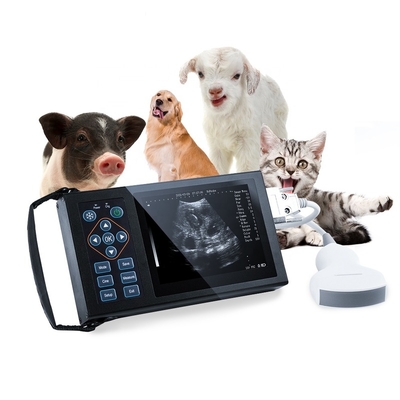

Full Digital Veterinary Ultrasound Scanner

> Applicable for Pigs, Sheeps, Dogs, Cats

> 5.6-inch high-definition screen,

>High strength aluminum alloy metal shell.

> Waterproof electronic convex array probe. >Sixteen colors can be adjusted

>Video playback function

> Fast Backfat measurement and display

> Test Pregnance, numbers of births, Uterine disease

> Support external U disk, monitor, printer, etc

> Support multi-language customization

> Normal power is less than 9W

Details Images

The A10 full digital Vet ultrasound scanner is with high quality body and spare parts.

Fully waterproof electronic convex array probe for perfect protect of probe

Strong aluminum alloy metal shell for long life of device

5.6-inch high-definition screen (double screen) for clear view

Product Usage

Main Test Function :

>Pregnance,

>Numbers of births,

>Uterine disease

Applicable for Animals :

>Pigs

>Sheep

>Dogs

>Cats

BACK FAT Measurement:

Fast measurement of backfat

Automatically display of backfat

Various type of port for external interface:

>Udisk

>Monitor

>Printer

>USB

Product Paramenters

Physical Spec
Host size	206x120x35 mm
Weight:	950G
Body material	Aluminum alloy metal shell
Scanning mode	convex array scanning
Interface	USB interface, PAL-D / NTSC video, VGA
Battery	Lithium battery, 18650 standard cell, work for about 4 hours
Display	Size:	5.6-inch LED display
	Display	Display mode:	B, B + B, 4b, B + m, m;
		Max display depth	270mm
		Resolution	Lateral ≤ 2mm, axial ≤ 1mm
		Character display	Gain, frequency, dynamic, date, time
		Display magnification	16 display modes
		Movie playback	256 frame playback, select any image and save frame by frame
		Image rotation	Image can be flipped up, down, left and right
		Image processing	Gamma correction (0-7), Frame correlation (0-3), Line correlation (0-5), Edge enhancement (0-3), Left and right flip (0-1), Sixteen kinds of pseudo color processing
		Innotation function	Convenient for text and body mark annotation
More Prameter
Electron focusing	4 stage electron focusing
Frequency conversion	Five section frequency conversion
Blind area:	≤ 4
Geometric accuracy	Transverse ≤ 5%, longitudinal ≤ 5%
Near field adjustment	- 31 ~ 0
Far field adjustment	0 ~ 31
Routine measurement	Distance, perimeter, area, volume and angle
Special measurement	Heart measurement and lean meat rate measurement; Obstetric measurement of 8 kinds of animals
Dynamic range	0-135db
More function	Grid ruler and point ruler, which can read the size of the detected object quickly
More function		Organization harmonic, histogram

Product packaging
